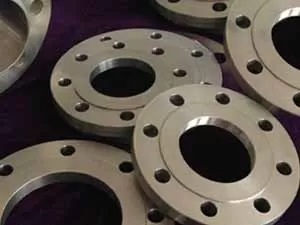

Titanium

Flanges

Titanium
Flanges

Titanium Blind Flanges are typified by their resistance to attack by acids and alkalis, as well as their high mechanical strength and good ductility. Meanwhile, these Titanium Lap Joint Flanges are also being offered in different sizes and shapes to our customers. A thoroughly modern alloy, these Titanium Socket Weld Flanges, is a high performance alloy that benefits greatly from double melting through the Electro Slag Refining (ESR) process. Electro Slag Refining (ESR) process ensures the cleanest and highest quality of Titanium Ring Joint Type Flanges is supplied. .


Titanium Flanges Specifications

Titanium Flanges Specifications
Specifications : ASTM B381 / ASME SB381
Size : 1/2″NB TO 60″NB
Standards
 : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.


Titanium Flanges Chemical Composition

Grade Ti C Fe H N O Al V
Titanium 99.2 min 0.1 max 0.3 max 0.015 max 0.03 max 0.25 max – –


Titanium Flanges Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Titanium 4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %
