Flats Angel Beam Channel

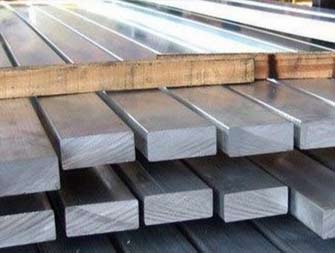

Flat

A Polished Stainless Steel Flat Bar has a very shiny appearance and they are capable of resisting corrosion better. They can withstand the corrosive environments much better than roughly polished ss flat bars and thus, they are mainly used in aggressive environments, like nuclear industries or off-shore oil drilling companies.

The Brushed Stainless Steel Flat Bars comes with a dull polish and they are basically made with the help of friction. Rather than enhancing the properties of the flat bars, it helps in enhancing its appearance. The brushed finish has a very distinctive look with little luster and very fine lines.


Flat bar Specification

Specification EN 10272, EN 10088-3 Grade 304/ 304L, 316/ 316L
Standard API, ASME, SUS, DIN, EN, GB, UNS, ASTM, AISI
Sizes 3mm to 800mm diameter
Length
  • 12 Random Lengths
  • Long Bars: 15-20 Random Lengths
Finish Cold Drawn Turned, Bright Drawn, Polished, Rough Turned, Centreless Ground, Bright, Annealed, Smooth Turned, Peeled, Grinding, Black
Tolerances H12, H11, K11, K12, H10, H8, H9, H13, K10, K9
Surface Finish 1D, HL, 8K, NO.4, 2D, NO.1, NO.3, 2B, BA
Production Method Rolled / Forged
Characteristics
  • Cold Working of Flat Bar: Good
  • Corrosion Resistance: Excellent
  • SS Flat Bar Heat Resistance: Good
  • Heat Treatment : Poor
  • SS Flat Bar Hot Working: Fair
  • Machinability: Good
  • SS Flat Bar Weldability: Very Good
Value Added Services at Suraj Metal
  • Heat Treatment
  • Production Bar Cutting
  • Chemical Milling
  • Turn, Ground, and Polishing
  • Surface Machining
  • Shearing
  • Precision Grinding
  • Trepanning
  • Rigidizing
  • Custom Packing
Other available forms Forging, Profiles, T-Bar, Rod, Hollow, Triangle, Channel, Threaded, Ingot, Rounds, Rectangle, Blocks, Billet, I/H, Half-Round, Angle, Precision-Ground
Our Stainless Steel Flat Bar conforms to Standard ISO 15156/ NACE MR0175

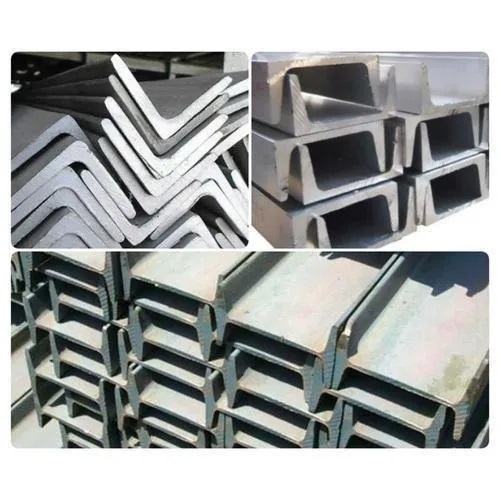

Angel, Channel, Beam

A Polished Stainless Steel Flat Bar has a very shiny appearance and they are capable of resisting corrosion better. They can withstand the corrosive environments much better than roughly polished ss flat bars and thus, they are mainly used in aggressive environments, like nuclear industries or off-shore oil drilling companies.

The Brushed Stainless Steel Flat Bars comes with a dull polish and they are basically made with the help of friction. Rather than enhancing the properties of the flat bars, it helps in enhancing its appearance. The brushed finish has a very distinctive look with little luster and very fine lines.


Angle, Channel, Beam Specifications
Specifications : ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
SS 303 Angle
 : 5mm to 9mm
SS 303 Channel
 : 40mm*20mm~300mm*300mm
SS 303 Beam : 3″ thru 12.31″
Thickness
 : 3.0mm – 120mm
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Type : Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam


Angle, Channel, Beam Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 303 0.15 max 2 max 1 max 0.20 max 0.15 min 17.0-19.0 – 8 – 10 –
